I was recently asked to make a personalized notebook and the following book is the result. Below is a short video of the process. I have 2 more covers without names that could be made into a personal book as an awesome gift (click here for more information on the notebooks available).
Robroy
Some of the items that I really enjoy to make are notebooks with wooden covers, bound with Coptic-stitching. The front cover often have an image cut with a scroll saw. In this post I make notebooks with the image of the Guy-Fawkes mask, currently associated with the hacktivist group Anonymous:
Completed notebooks – 3 different colors
—–
There are three parts to making these books. The first is making the covers, the second is making the signatures and last part is binding everything together. I start making the covers. For this book I use A6 sized pine covers.
Blank A6 covers and pattern
I use tape three blank covers together, to make a stack to be cut at the same time, and stick the pattern on. I add clear tape over the cover to kelp with lubricating the blade while cutting and also not to smudge the printed image (I need a better quality printer…). The next step is to drill the entry holes.

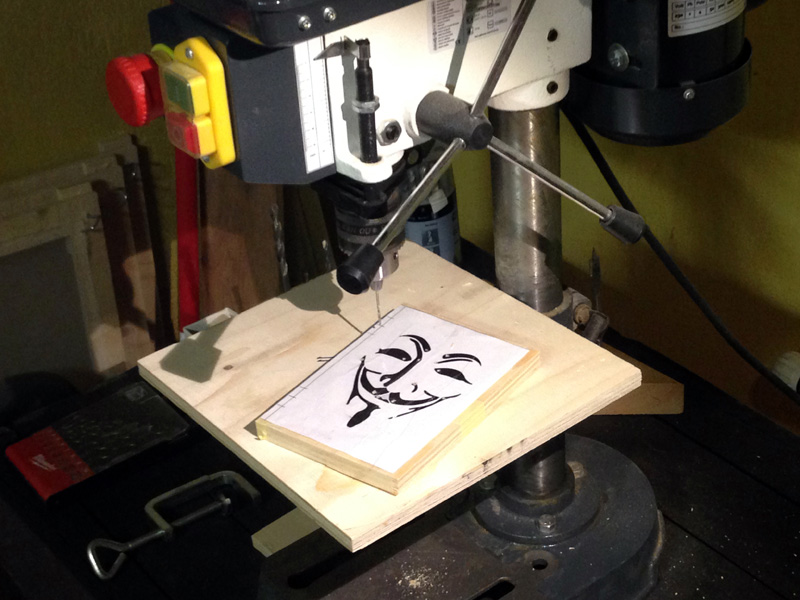

Drilling the entry holes
After the holes are drilled, I can begin with cutting the image. I use a #5 reverse tooth scroll saw blade for this image. This image is quite easy to cut since it is reasonably big and it takes approximately 40 minutes (at some stage I hope to be a faster).
Scrolling
Before I remove the pattern I add the back covers to the stack and tape them in place. I drill the holes for binding through all 6 covers before removing the pattern and all the tape. Using masking tape (painters tape), before sticking on the pattern makes removal easy. The next step is sanding. I sand the covers to 400 grit and use several small strips and emery boards on the inside of the image.
Sanding – one constant in woodwork
I made three notebooks and decided to make each one slightly different in color. The first I kept natural pine cover. The second I painted with a diluted, water based, acrylic paint to give a slightly white wash appearance. The third cover was stained with a home made stain of vinegar, steel wool and coffee. This gives the wood a grayish aged look. After the stain and paint dried, I added 4 layers of glossy lacquer.
Painting with diluted white paint
Drying after staining
Painted, stained and lacquered – from left – White wash, Natural, Stained
After the covers are done I make the signatures. For each book I make 9 signatures with 12 pages – 108 pages per book. To make each signature I take three A4 pages and fold in half 2 times. I stack the 9 signatures together and place between 2 pieces of sacrificial wood. I tape the wood together and cut approximately 5mm from three outside sides on the scroll saw using a #9 blade. While bound I also cut the slits in the back of the signatures through which they are bound (see here for more information).
Cutting the pages to size
I roughly paint the first page of the first signature black. This is to give a nice contrast to the image when the book is closed.
Painting the first page – note the slits for binding
The last item to prepare is the thread. I use black thread that I pull through beeswax to make my own waxed thread.
All the items ready for binding
The final step is to bind the book. I use Coptic stitching since it makes a nice pattern on the spine. It also allows for the notebook to open completely. Currently it takes approximately 50 minutes to bind each book (if no mistakes are made).
Hand stitching
Halfway done
The completed books turned out very close to the image I had in mind when starting this project.
Front cover
Inside front cover
Spines with Coptic stitching
I currently have several notebooks and will continue to make more with different designs (I also take requests for custom covers). These three notebooks are however the only “Anonymous cover notebooks” I have and are available here.
I have tried other binding methods and plan to try a few more in the future. I am however working on several other projects that are not notebooks and I will write about these soon…
Robroy
—–
The Dart Vader book competition closed on the 29th of February 2016 and I drew the winner on the 1st of March (this was the 61st day of the year and also the seed number for the random draw). Below is the script I used to draw the winner, implemented in R.
Cover of the Darth Vader notebook
The competition was quite a lot of fun with many entries and 116 correct answers.
Thank you for participating!
I am planning to have more competitions through the year with prizes like this or other items I make (examples here).
To remain informed on what is happening at Induku and when there is a new competition please subscribe to the Induku newsletter:
Robroy.
– – –
Script used for Darth Vader competition draw.
Number of contestants 116 – in alphabetical order.
Seed value 61 – This is the day number of the draw.
#Random draw script - written to be implemented in R
#Darth Vader Notebook
#(added in alphabetical order using the names provided by them (if 2 names are the same a unique number will be provided to each))
contestants <- c("aarone mawdsley","Alex Fowler","Alexandru Rusu","Amanda","Amy","andrea tinkler","Andrea V","Andrew","Angela Hogan","angela parkinson","Anneka Hulse","Annie","Audrey Stewart","Audrey Tebbs","Betony Bennett","Birgit","Brian Hatch","Carol boffey","carolyn joyce","catherine burke","Cathleen King","cazzie","Champaklal Lad","Charmian Filewood","Chris kind r (sssixxx)","Christian Bush","Cindy Nelson-Viljoen","CJ Macmanus","Colin Gault","corinne peat (@corinne555)","cosmonauty","Crystal Donohue","Dan Goodfellow","Dave Harrington","Dawn Wright","debbie","debbie jackson","Deborah Colucci","Deborah mcilwham scanlon","Dilshu","don erwood","duke lane","elle.dee.see","ellie spider","Fabian R","Gabriel Atienza","Hayley Austin","hayleywigboldus","Heather","hoofsweep","Howard Sleight","iain maciver","Ida Lindberg","Isla Salisbury","Jess M Woods","Jesse L.","John McNamara","Jonathan Khoo","Joy Kehoe","Julia Mason","Justin Anderson","Karen Dixon","karen hill","Karen Howden","Karin Olsson","Karla R.","keely smith","Kirsty Woods","Kyomi Johnson","laura power","lisa ann tebbutt","Lorraine","lynn neal","Lysa JP","Magdalena","Mandy Doherty","martin smith","mechelle williamson","Michelle Bruce","Morag Downie","Mrs Rachel Heap","Nathachia Pierre","Neil Dobson","Nicola Glover","Nikki Jones","olgavp","Pam Smith","paul jackson","PJ (@DudeVaper)","Racheal M","Rachel","Raine","rita martins","Rosanna Corpin","Ruth Wollerton","Ruy M.","Samantha Sophia Felton","Sami K.","sandy ralph","sarah rees","Scott Fallon","sean","Shaun tutt","sheridarby","shreya y","Simon Harrington","skye","Stella Martis","Susan Trubey","Suzy","sylvia spall","Tegan","Tim Graham","Wanda Patterson","wibeke fredell","Victoria Thurgood")
#the seed is the day of the current year on which the draw is held
#1 March 2016 = day 61
set.seed(61)
#--The Draw
winner <- sample(contestants, size=1, replace = FALSE, prob = NULL)
winner
